Understanding the difference between a plug and a receptacle is essential when working with electrical connectors and wiring harness assemblies. While these components are designed to mate together to form a complete electrical connection, each serves a distinct role within an electrical system.
In aviation and military applications — where precision, reliability, and compliance with strict standards are critical — proper identification and use of connector plugs and receptacles help ensure safe, consistent performance across aircraft wiring harnesses and panel assemblies.
Understanding Electrical Connectors in Wiring Harnesses
Connectors are used on electrical wiring harnesses and serve as protective enclosures, often referred to as shells, that house contacts attached to wires. These contacts provide the electrical interface between the wiring harness and the connected system or component.
Electrical connections at the contact termination are typically made using either soldered or crimped connections.
In many aerospace and military applications, crimped connections are preferred because they provide consistent electrical performance and allow contacts to be removed from the connector using specialized tooling when maintenance or rework is required.
Connector shells and inserts may be designed to be moisture-resistant or incorporate hermetic sealing, depending on environmental requirements. These features help protect the contacts from moisture, corrosion, and contamination.
To ensure proper mating, inserts must be correctly oriented. The shell or insert typically includes keying features that prevent mis-mating. This alignment is critical, as incorrect mating can result in connector damage or electrical faults.
The Origin of Plug and Receptacle Connectors in Military Aircraft
Connector plugs and receptacles most commonly used for military aircraft were developed in the 1930s. These early designs established the foundation for today’s Military Standard (MIL-STD) and Military Specification (MIL-SPEC) connectors.
Plug vs. Receptacle: The Key Differences in Electrical Connections
What Is a Plug?

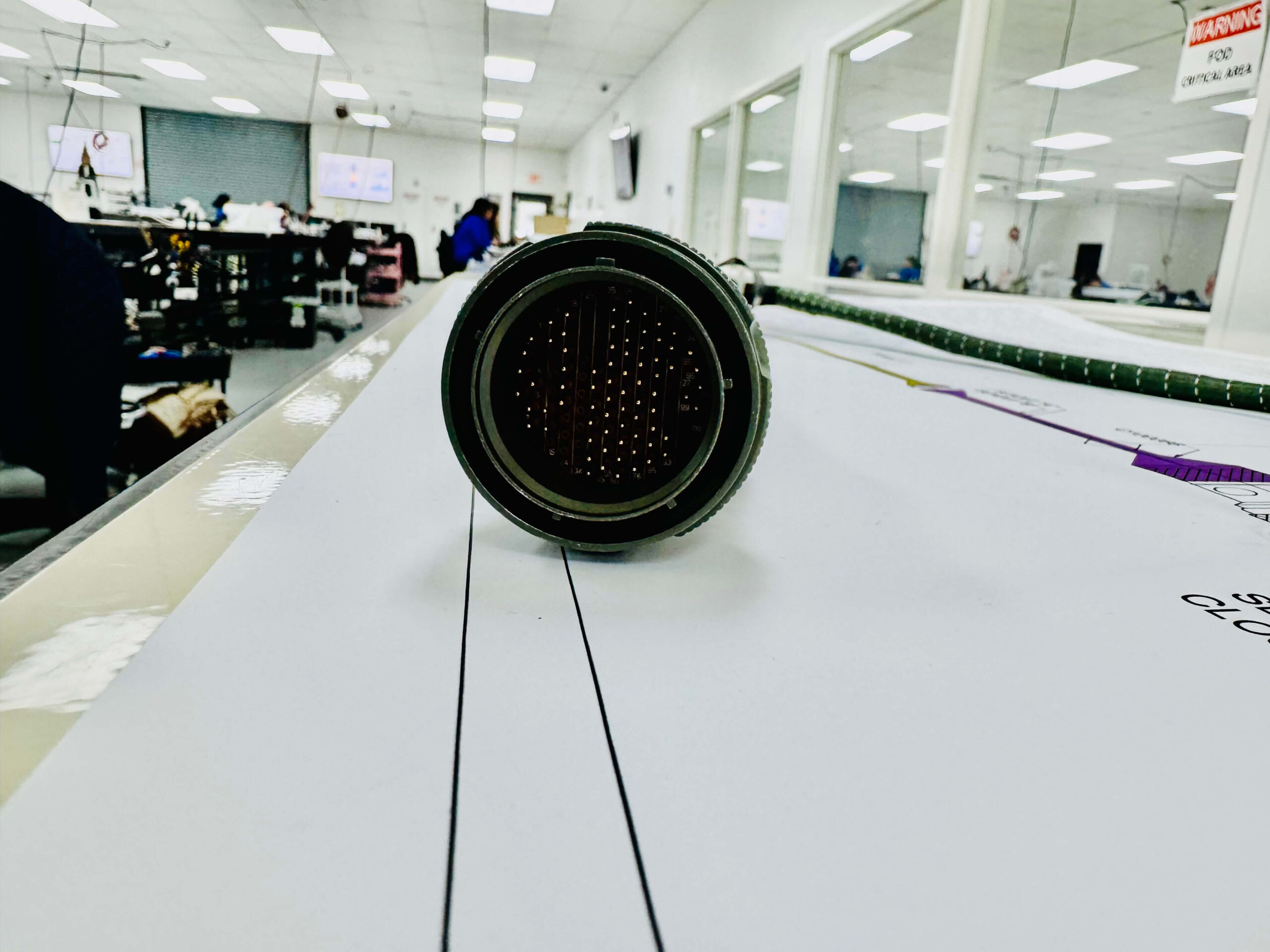

A plug is the portion of a connector assembly that contains extended or protruding conductive pins. These pins are designed to insert into corresponding sockets within a mating connector.
A plug connector is often referred to as “male” and is engineered to mate precisely with their designated receptacle.
What Is a Receptacle?

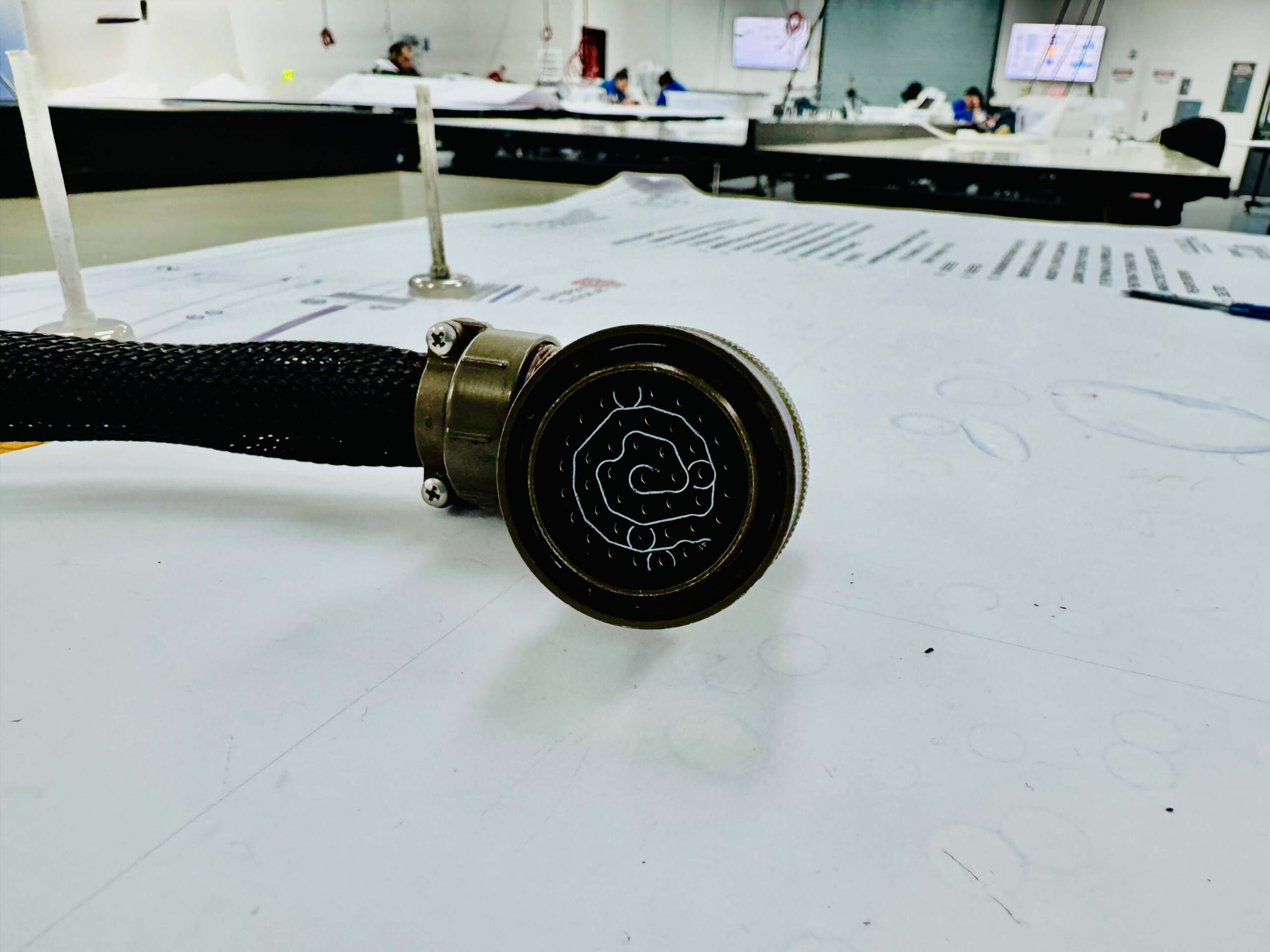

A receptacle is the mating connector that contains sockets designed to accept the pins of a plug. A receptacle connector is sometimes referred to as a jack.
Receptacles typically include mounting features, such as a flange with mounting holes, allowing them to be securely attached to panels, bulkheads, or equipment enclosures.
A receptacle connector is often referred to as “female” and is engineered to mate precisely with their designated plug.
Key Differences Between a Plug and a Receptacle
The primary difference between a plug and a receptacle lies in how they physically connect:
- Plugs contain protruding pins
- Receptacles contain sockets that accept those pins
- Receptacles often include mounting features for panel or equipment installation
Every electrical wiring harness will contain a combination of connector plugs and receptacles, each selected based on its function and mounting requirements.
Why Both Plugs and Receptacles Are Required
What does all this mean in practice? Simply put, every connector plug must have a mating connector receptacle, and every connector receptacle must have a corresponding connector plug within the aircraft.
This precise pairing ensures reliable electrical connections throughout the system and supports proper installation, maintenance, and long-term performance.
How InterConnect Wiring Ensures Correct Plug and Receptacle Pairing
InterConnect Wiring applies structured processes to ensure every plug and receptacle is correctly matched throughout harness assembly.
- Engineering review of connector requirements and reference designators
- Quality control checks during wiring harness assembly and inspection
- Consistent pairing and verification across production runs
See Connector Plugs and Receptacles in Action at InterConnect Wiring
If you want to see some connector plugs and receptacles on the shop floor, schedule a tour. We will show you how connector plugs and receptacles mate together in military aircraft harnesses and panels for the F-16, UH-60, F-22, and AH-1.
